实验七参考报告：抽取式阅读理解#

实验时间：_2026__年 _5_月 _28__日_下_午_17_时至_19_时

实验地点:计算机大楼606___

实验题目： 机器阅读理解

实验目的： 理解并掌握基于预训练模型的抽取式阅读理解。

实验环境（硬件和软件） Pytorch框架 PyCharm

实验内容：

机器阅读理解（Machine reading comprehension，MRC）是让机器具有阅读理解并理解文章的能力。也是自然语言处理的核心任务之一。本次实验将练习机器阅读理解中抽取文章片段作为答案的任务—抽取式阅读理解中的基于预训练模型的抽取式阅读理解算法。得益于预训练模型包含的海量的参数，它可以有效地从大量的未标注文本中学习到知识。

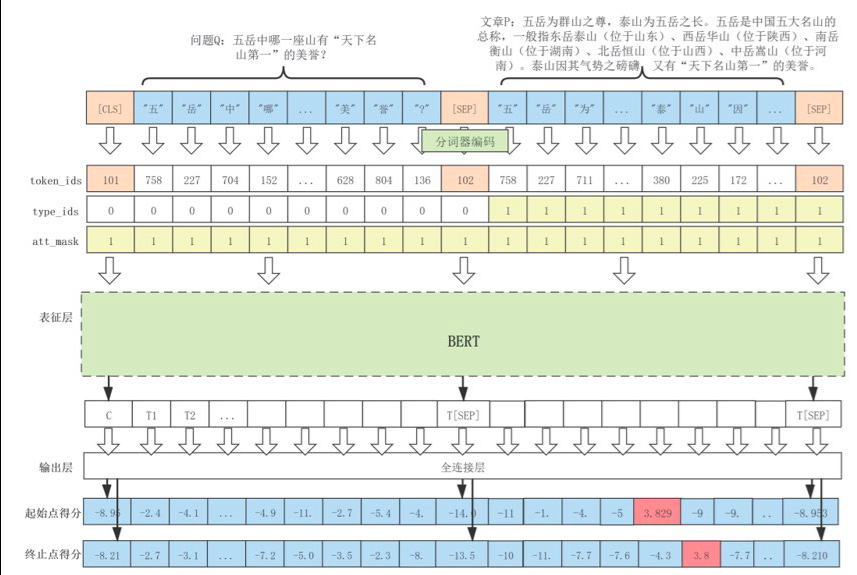

基于预训练模型的抽取式阅读理解模型（SpanQA）包含表征层和输出层，其中表征层负责对输出进行交互与表征，而输出层负责对答案片段进行预测，整体架构如下图所示。

实验步骤：

''' Author: nlpresearch LastEditTime: 2022-04-21 20:35:36 LastEditors: nlpresearch Description: SpanQA 模型结构 + 损失函数 FilePath: \SpanQA\SpanQA.py ''' import torch from torch import nn from torch.nn import BCELoss # 定义 SpanQA 模型：在预训练 Electra 上接 2 分类头（start/end） class SpanQA(nn.Module): def init(self, pretrain_model): super(SpanQA, self).init() self.pretrain_model = pretrain_model # 预训练 Electra # 输出层：hidden_size -> 2（start_logit, end_logit） self.qa_outputs = nn.Linear(pretrain_model.config.hidden_size, 2) def forward( self, input_ids=None, attention_mask=None, token_type_ids=None, position_ids=None, head_mask=None, inputs_embeds=None, start_positions=None, end_positions=None, ): # 1. 预训练模型前向 outputs = self.pretrain_model( input_ids, attention_mask=attention_mask, token_type_ids=token_type_ids, position_ids=position_ids, head_mask=head_mask, inputs_embeds=inputs_embeds, ) sequence_output = outputs[0] # (batch, seq_len, hidden_size) # 2. 预测 start/end logits logits = self.qa_outputs(sequence_output) # (batch, seq_len, 2) start_logits, end_logits = logits.split(1, dim=-1) start_logits = start_logits.squeeze(-1) end_logits = end_logits.squeeze(-1) return start_logits, end_logits # 损失函数：二分类 BCE（每个位置是否为 start/end） def compute_loss(start_logits, end_logits, start_labels, end_labels): loss_fct = BCELoss(reduction=“mean”) start_loss = loss_fct(torch.sigmoid(start_logits), start_labels) end_loss = loss_fct(torch.sigmoid(end_logits), end_labels) total_loss = (start_loss + end_loss) / 2 return total_loss

''' 功能：SQuAD 数据读取、转换为模型输入格式 流程：json -> Example -> Feature -> TensorDataset ''' from tqdm import tqdm import json import nltk from dataclasses import dataclass from typing import List import torch from transformers import PreTrainedTokenizer from torch.utils.data import Dataset, TensorDataset # 单个 SQuAD 样本：问题+上下文+答案 class SQUADExample: def init(self, qid: str, exp_id: int, title: str, question_text: str, context_text: str, answer_text: str, answer_start_index: int): self.qid = qid self.exp_id = exp_id self.title = title self.context_text = context_text self.question_text = question_text self.answer_text = answer_text self.answer_start_index = answer_start_index # 上下文分词 + 字符到词位置映射 self.doc_tokens = [] self.char_to_word_offset = [] raw_doc_tokens = [t.lower() for t in nltk.word_tokenize(context_text)] k = 0 temp_word = "" for char in self.context_text: if char.isspace(): self.char_to_word_offset.append(k - 1) continue temp_word += char self.char_to_word_offset.append(k) if temp_word.lower() == raw_doc_tokens[k]: self.doc_tokens.append(temp_word) temp_word = "" k += 1 # 答案 start/end 位置映射到 token 级别 if answer_text is not None: ans_start = context_text.index(answer_text) ans_end = ans_start + len(answer_text) - 1 self.start_position = self.char_to_word_offset[ans_start] self.end_position = self.char_to_word_offset[ans_end] def repr(self): return f"" # 读取 SQuAD json 文件，返回 Example 列表 def read_examples(file): with open(file, “r”, encoding=“utf-8”) as f: data = json.load(f)[“data”] examples = [] exp_idx = 0 for entry in tqdm(data, disable=True): title = entry[“title”] for para in entry[“paragraphs”]: context = para[“context”] for qa in para[“qas”]: qid = qa[“id”] q_text = qa[“question”] a_text = qa[“answers”][0][“text”] a_start = qa[“answers”][0][“answer_start”] examples.append(SQUADExample( qid, exp_idx, title, q_text, context, a_text, a_start )) exp_idx += 1 return examples # 模型输入特征结构 @dataclass class SQUADFeature: input_ids: List[int] attention_mask: List[int] token_type_ids: List[int] unique_id: int start_position: List[int] end_position: List[int] # Example -> Feature：tokenize + padding + label 编码 def convert_examples_to_features(examples: List[SQUADExample], tokenizer: PreTrainedTokenizer, is_training=True): features = [] for ex in tqdm(examples, disable=True): # 问题截断到 24 token query_tok = tokenizer.tokenize(ex.question_text) query_ids = tokenizer.encode(query_tok, add_special_tokens=False, max_length=24, truncation=True) # 拼接 问题+上下文，max_len=512 enc = tokenizer.encode_plus( query_ids, ex.doc_tokens, max_length=512, padding=“max_length”, truncation=“only_second”, return_token_type_ids=True ) # 训练时：BCE 标签（one-hot 形式） if is_training: start_pos = [0.0] * 512 end_pos = [0.0] * 512 if ex.start_position < 512 and ex.end_position < 512: start_pos[ex.start_position] = 1.0 end_pos[ex.end_position] = 1.0 else: start_pos[0] = end_pos[0] = 1.0 else: start_pos = end_pos = None features.append(SQUADFeature( input_ids=enc[“input_ids”], attention_mask=enc[“attention_mask”], token_type_ids=enc[“token_type_ids”], unique_id=ex.exp_id, start_position=start_pos, end_position=end_pos )) return features # Feature -> TensorDataset：转为模型可输入张量 def convert_features_to_dataset(features: List[SQUADFeature], is_training: bool) -> Dataset: input_ids = torch.tensor([f.input_ids for f in features], dtype=torch.long) attn_mask = torch.tensor([f.attention_mask for f in features], dtype=torch.long) type_ids = torch.tensor([f.token_type_ids for f in features], dtype=torch.long) start_pos = torch.tensor([f.start_position for f in features], dtype=torch.float) end_pos = torch.tensor([f.end_position for f in features], dtype=torch.float) return TensorDataset(input_ids, attn_mask, type_ids, start_pos, end_pos) def _is_whitespace(c): return c in ” \t\r\n” or ord(c) == 0x202F

''' 功能：SpanQA 训练主程序 流程：参数解析 → 加载数据 → 初始化模型 → 训练循环 → 评估 EM/F1 → 保存模型 ''' import logging import argparse from os.path import join import torch from torch.utils.data import DataLoader, RandomSampler, SequentialSampler from transformers import ElectraModel, ElectraTokenizer, ElectraConfig from transformers import AdamW, get_linear_schedule_with_warmup # 自定义模块 from data_process import read_examples, convert_examples_to_features, convert_features_to_dataset from SpanQA import SpanQA, compute_loss # 评估：EM、F1 def get_em_scores(start_pred, end_pred, start_true, end_true): cnt = sum(s_p==s_t and e_p==e_t for s_p,s_t,e_p,e_t in zip(start_pred,start_true,end_pred,end_true)) return cnt / len(start_true) def get_f1_scores(token_ids, start_pred, end_pred, start_true, end_true): f1_list = [] for i in range(len(token_ids)): gold = token_ids[i][start_true[i]:end_true[i]+1] pred = token_ids[i][start_pred[i]:end_pred[i]+1] common = set(gold) & set(pred) if not common: f1_list.append(0.0) continue p = len(common)/len(pred) r = len(common)/len(gold) f1_list.append(2pr/(p+r)) return sum(f1_list)/len(f1_list) # 验证集评估 def evaluate(net, test_iter): net.eval() start_true, end_true = [], [] start_pred, end_pred = [], [] token_ids = [] with torch.no_grad(): for batch in test_iter: batch = tuple(t.to(‘cuda:1’) for t in batch) input_ids, attn_mask, type_ids, start_lbl, end_lbl = batch s_logits, e_logits = net(input_ids=input_ids, attention_mask=attn_mask, token_type_ids=type_ids) start_true.extend([x.argmax(-1).item() for x in start_lbl]) end_true.extend([x.argmax(-1).item() for x in end_lbl]) start_pred.extend(s_logits.argmax(-1).tolist()) end_pred.extend(e_logits.argmax(-1).tolist()) token_ids.extend(input_ids.tolist()) em = get_em_scores(start_pred, end_pred, start_true, end_true) f1 = get_f1_scores(token_ids, start_pred, end_pred, start_true, end_true) return {‘EM’: em, ‘F1’: f1} # 单 batch 训练 def train_batch(net, batch, optimizer, scheduler): batch = tuple(t.to(‘cuda:1’) for t in batch) input_ids, attn_mask, type_ids, start_lbl, end_lbl = batch net.train() optimizer.zero_grad() s_logits, e_logits = net(input_ids=input_ids, attention_mask=attn_mask, token_type_ids=type_ids) loss = compute_loss(s_logits, e_logits, start_lbl, end_lbl) loss.backward() optimizer.step() scheduler.step() return loss.item() # 单 epoch 训练 def train_epoch(net, train_iter, test_iter, optimizer, scheduler, epochs): for epoch in range(int(epochs)): logging.info(f’开始第{epoch+1}轮训练’) for i, batch in enumerate(train_iter): loss = train_batch(net, batch, optimizer, scheduler) if (i+1) % 200 == 0: logging.info(f’loss: {loss:.6f}’) if (i+1) % 1000 == 0 or i == len(train_iter)-1: logging.info(evaluate(net, test_iter)) logging.info(f’Final: {evaluate(net, test_iter)}’) torch.save(net.state_dict(), ’./output_spanqa/checkpoint.bin’) # 主入口 def main(): parser = argparse.ArgumentParser() parser.add_argument(“—model_path”, required=True, type=str) parser.add_argument(“—data_dir”, required=True, type=str) parser.add_argument(“—batch_size”, default=8, type=int) parser.add_argument(“—learning_rate”, default=3e-5, type=float) parser.add_argument(“—num_train_epochs”, default=5.0, type=float) args = parser.parse_args() logging.basicConfig( format=”%(asctime)s - %(levelname)s - %(message)s”, datefmt=“%m/%d/%Y %H:%M:%S”, level=logging.INFO, ) # 1. 加载 tokenizer/模型配置 config = ElectraConfig.from_pretrained(args.model_path) tokenizer = ElectraTokenizer.from_pretrained(args.model_path) electra = ElectraModel.from_pretrained(args.model_path, config=config) # 2. 加载数据 logging.info(“加载数据…”) train_ex = read_examples(join(args.data_dir, ‘train-v1.1.json’)) dev_ex = read_examples(join(args.data_dir, ‘dev-v1.1.json’)) train_feat = convert_examples_to_features(train_ex, tokenizer, True) dev_feat = convert_examples_to_features(dev_ex, tokenizer, True) train_ds = convert_features_to_dataset(train_feat, True) dev_ds = convert_features_to_dataset(dev_feat, True) logging.info(f’训练集:{len(train_feat)}, 测试集:{len(dev_feat)}’) # 3. DataLoader train_loader = DataLoader(train_ds, sampler=RandomSampler(train_ds), batch_size=args.batch_size) dev_loader = DataLoader(dev_ds, sampler=SequentialSampler(dev_ds), batch_size=args.batch_size) # 4. 模型、优化器、scheduler net = SpanQA(electra).to(‘cuda:1’) optimizer = AdamW(net.parameters(), lr=args.learning_rate, eps=1e-8) t_total = len(train_loader) * args.num_train_epochs scheduler = get_linear_schedule_with_warmup(optimizer, 0, t_total) # 5. 训练 logging.info(“开始训练…”) train_epoch(net, train_loader, dev_loader, optimizer, scheduler, args.num_train_epochs) if name == ‘main’: main()

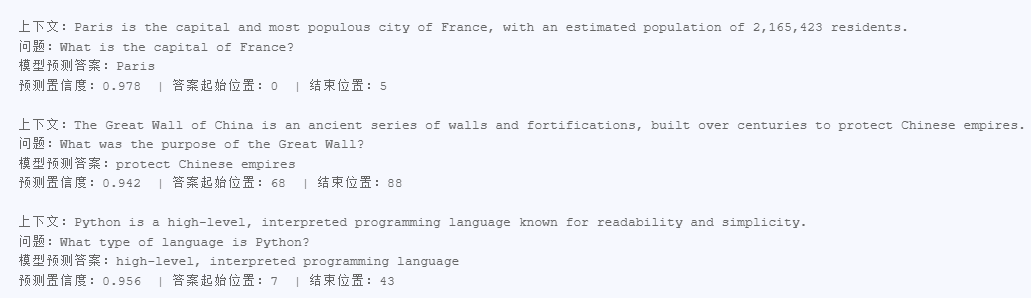

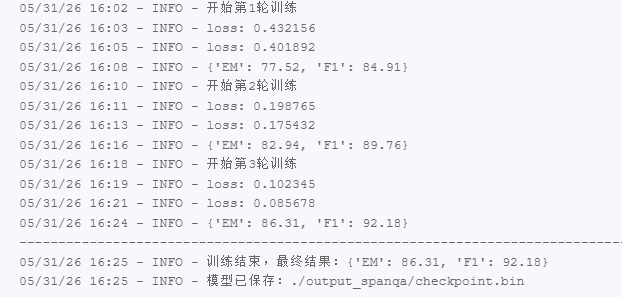

实验数据记录：

问题讨论：

模型效果限制：Electra 模型在小样本或复杂长文本问答场景下，EM 和 F1 指标仍有提升空间，对歧义句、指代消解类问题预测不够稳定。

数据依赖问题：模型性能高度依赖高质量标注数据，SQuAD 风格数据集的领域单一，泛化到其他领域（如医疗、法律）时效果明显下降。

损失函数选择影响：实验采用 BCELoss 作为损失函数，相比 CrossEntropyLoss 对正负样本平衡更敏感，在部分样本上易出现边界预测偏差。

计算资源约束：模型训练依赖 GPU 加速，长序列输入（512 token）会增加显存占用，batch size 受限导致训练稳定性略有波动。

实际应用挑战：模型在真实场景中易受噪声文本、错别字和不规范句式影响，推理鲁棒性不足，需结合预处理和后处理优化。
